Why shadows in browser look like from 2007?

My own context

Experience with non-standard shadows for WebGL and React Native.

My own context

Customers reaching out to me when standard APIs didn't work as well.

Web (CSS)

In 2007, work on box-shadow in CSS started (released in 2010)

CSS Backgrounds and Borders Module Level 3
# box-shadow

Web (CSS)

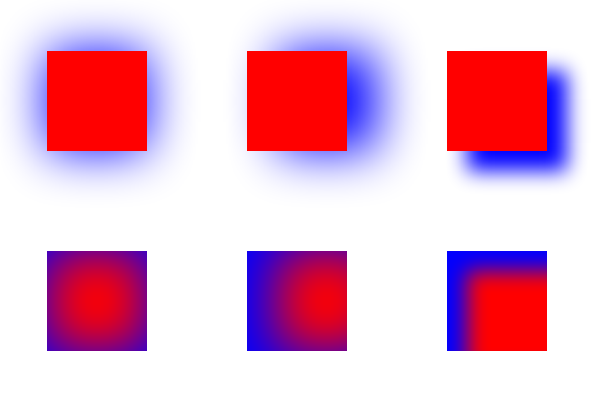

            box-shadow:
                inset 0 -3em 3em rgba(0, 0, 0, 0.1),
                0 0 0 2px rgb(255, 255, 255),
                0.3em 0.3em 1em rgba(0, 0, 0, 0.3);


iOS

• 2007: UIKit 🦕 🦖
• 2017: Swift UI 🤸‍♂️

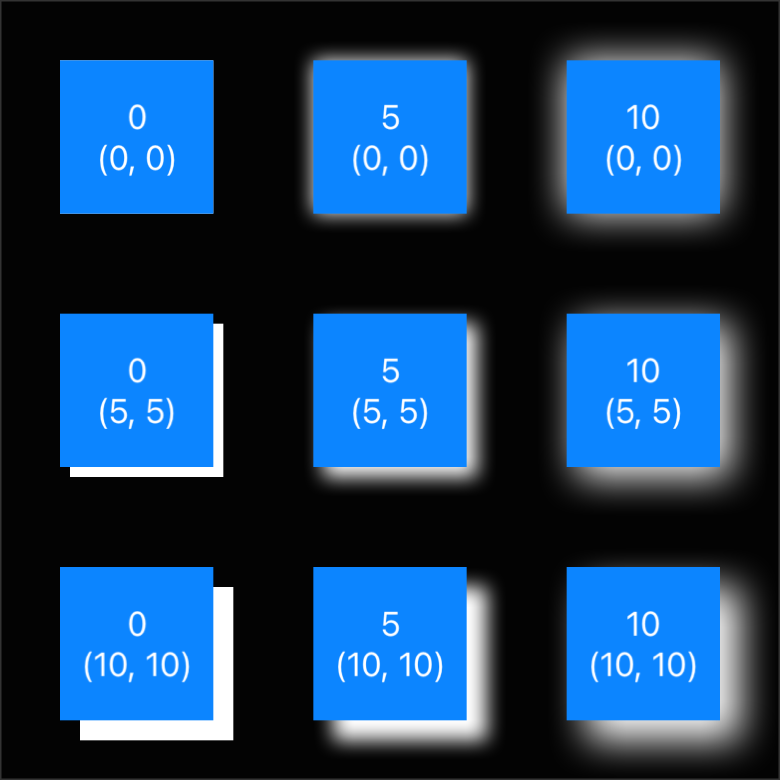

iOS (Swift UI)

            Element
              .shadow(
                color: .primary,
                radius: CGFloat(radius),
                x: CGFloat(offset),
                y: CGFloat(offset),
              )


Android

• 2008: XML-markup 🦕 🦖
• 2011: Material Design 🚀
• 2018: Jetpack Compose 🤸‍♂️

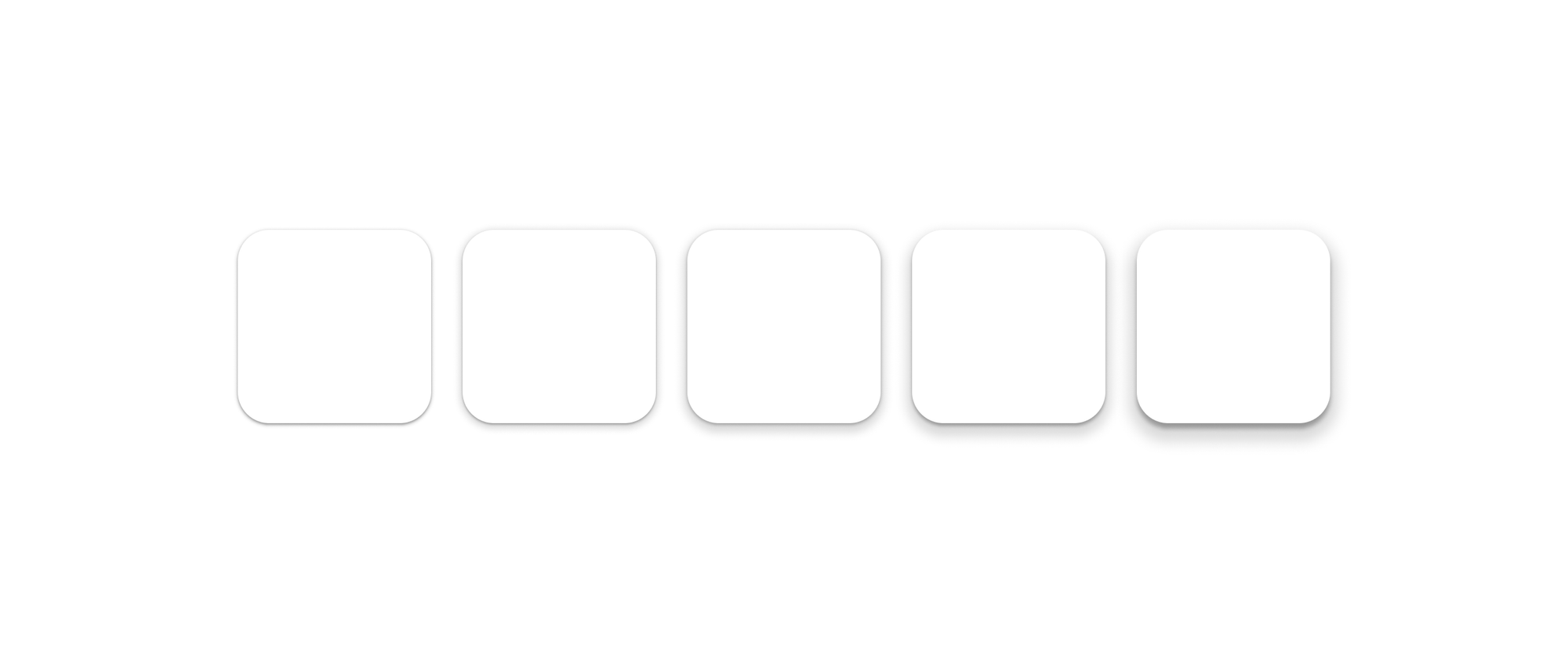

Android (< 9)

            <View
              android:elevation="2dp"
            >

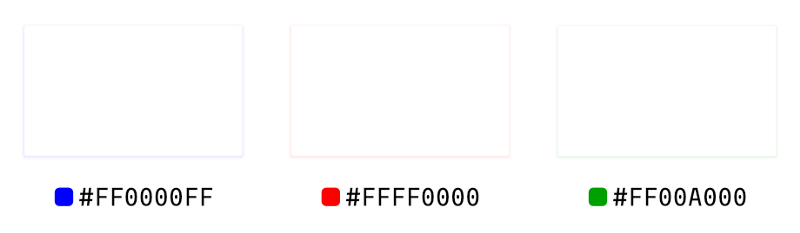

Android (Jetpack Compose)

            <View
              android:elevation="2dp"
              android:shape="CircleShape | RectangleShape | RoundedCornerShape"
              android:clip="true | false"
              android:ambientColor="@android:color/primary"
              android:spotColor="@android:color/secondary"
            >


Issue

Making the same UI-kit
for 3 platforms
is hard.

Issue

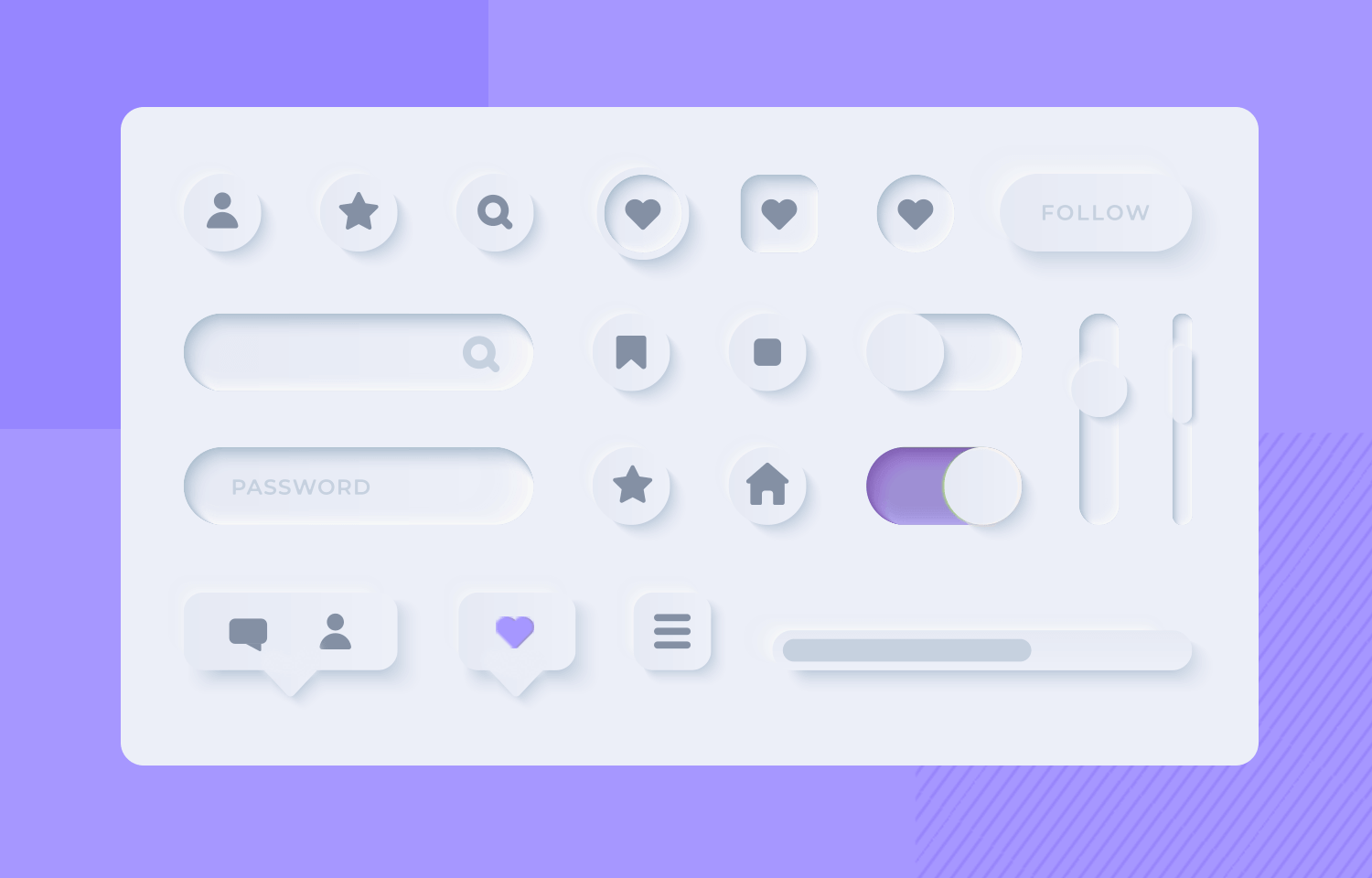

Shadows in 2025 still
look «flat» and restricted,
especially on Android and iOS.

Issue

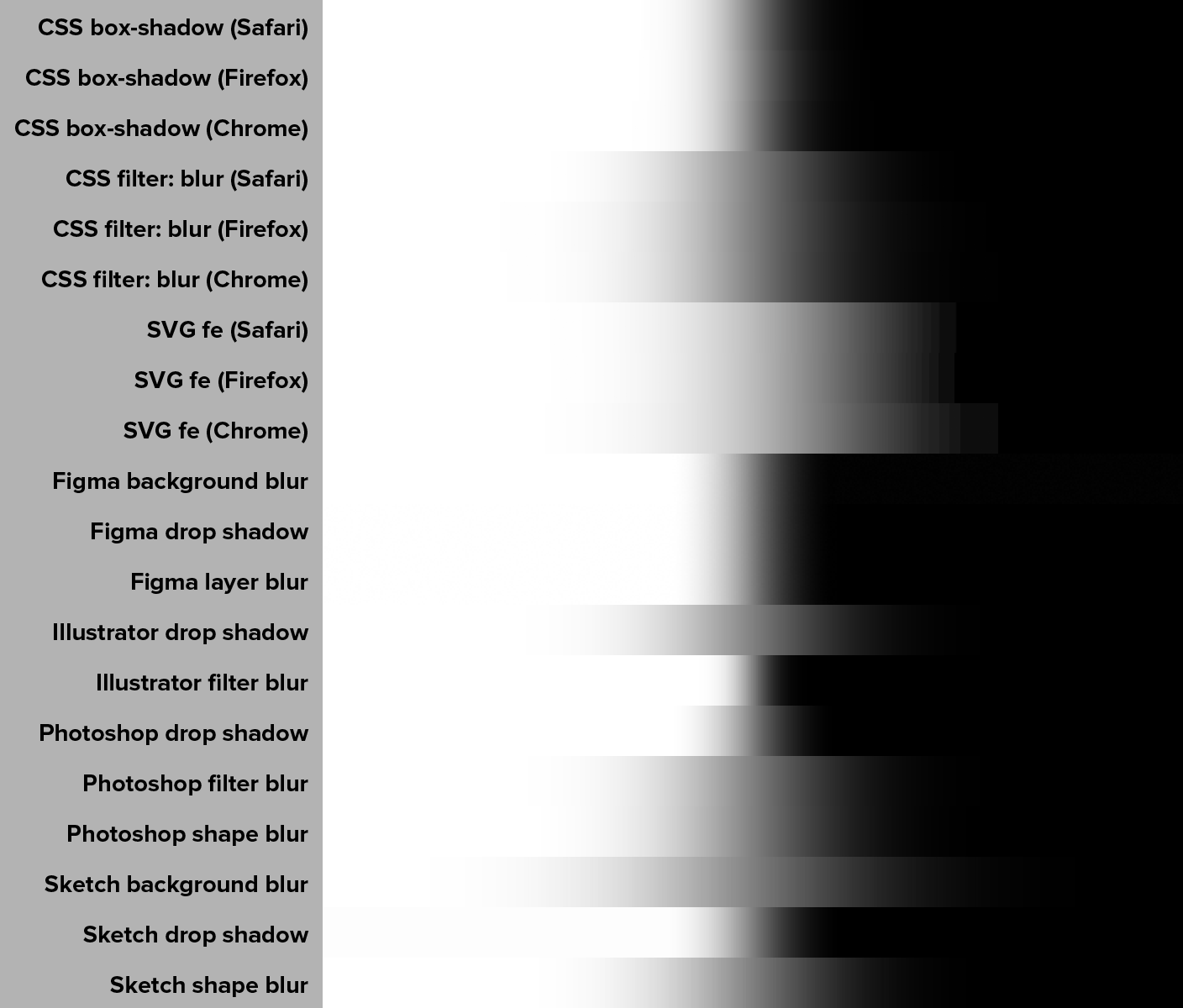

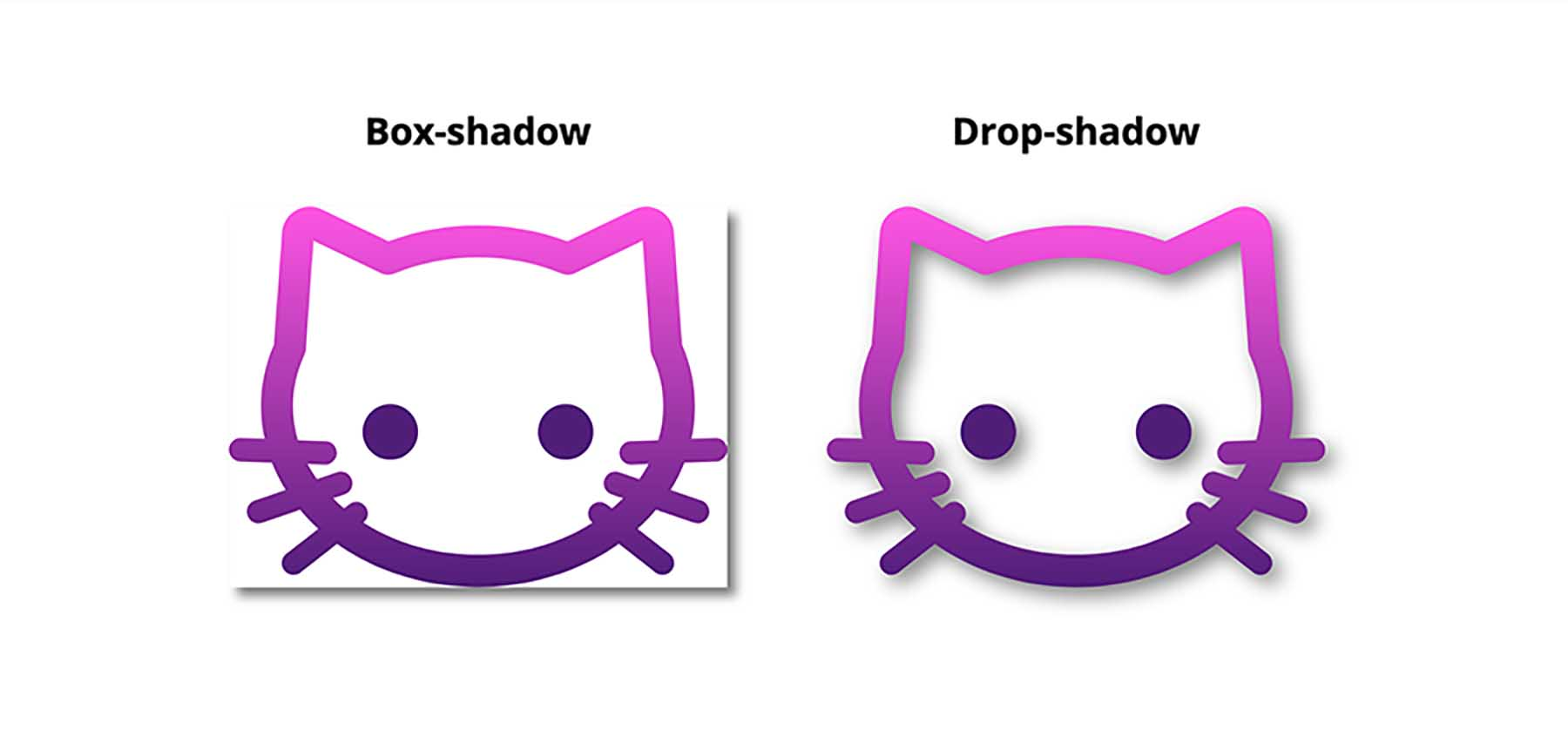

Shadows as a filter are supported
in browsers ONLY.

Shadows for every platform — it's a compromise between design and performance from 15 years ago.

What is UI made from?

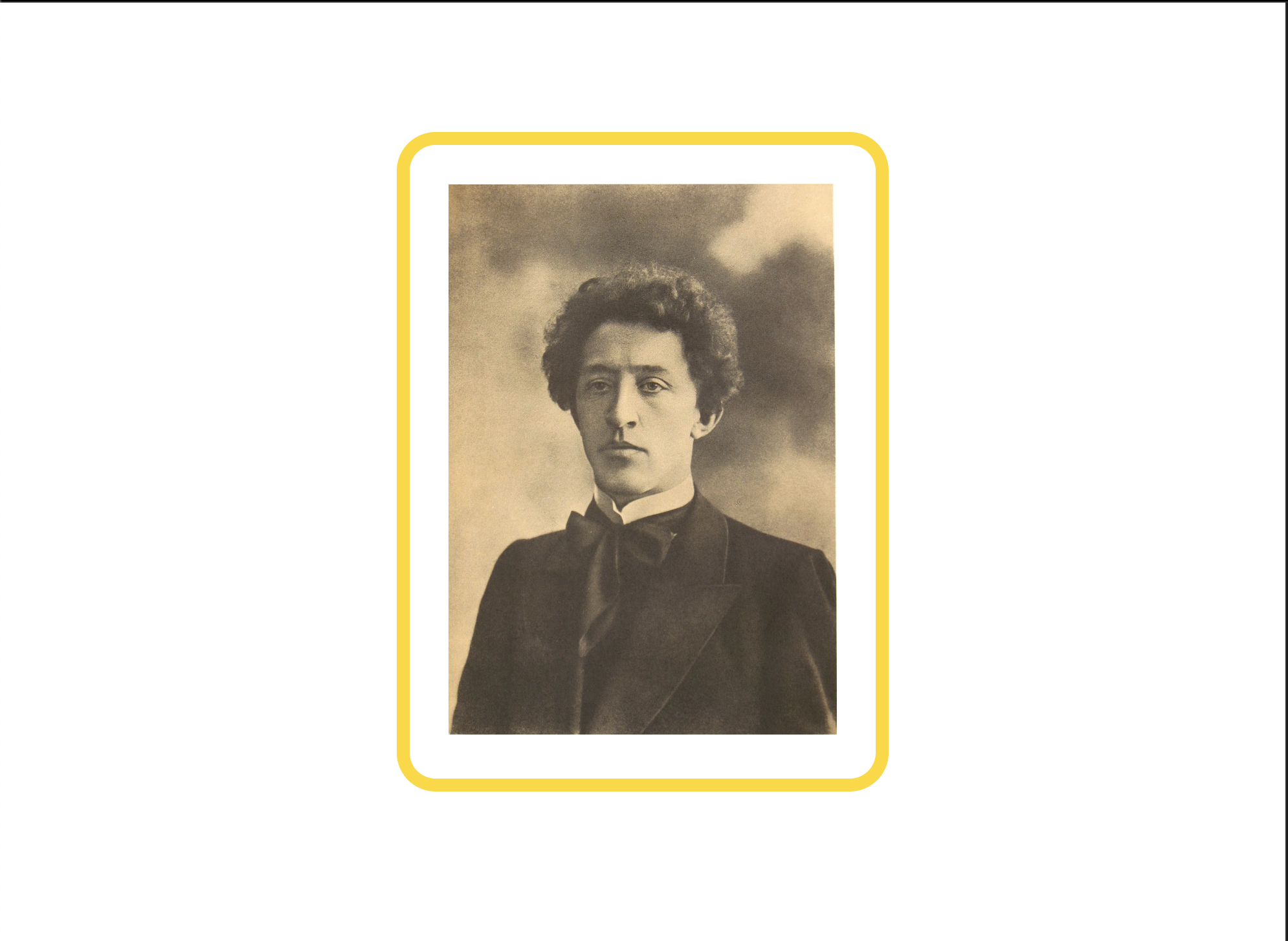

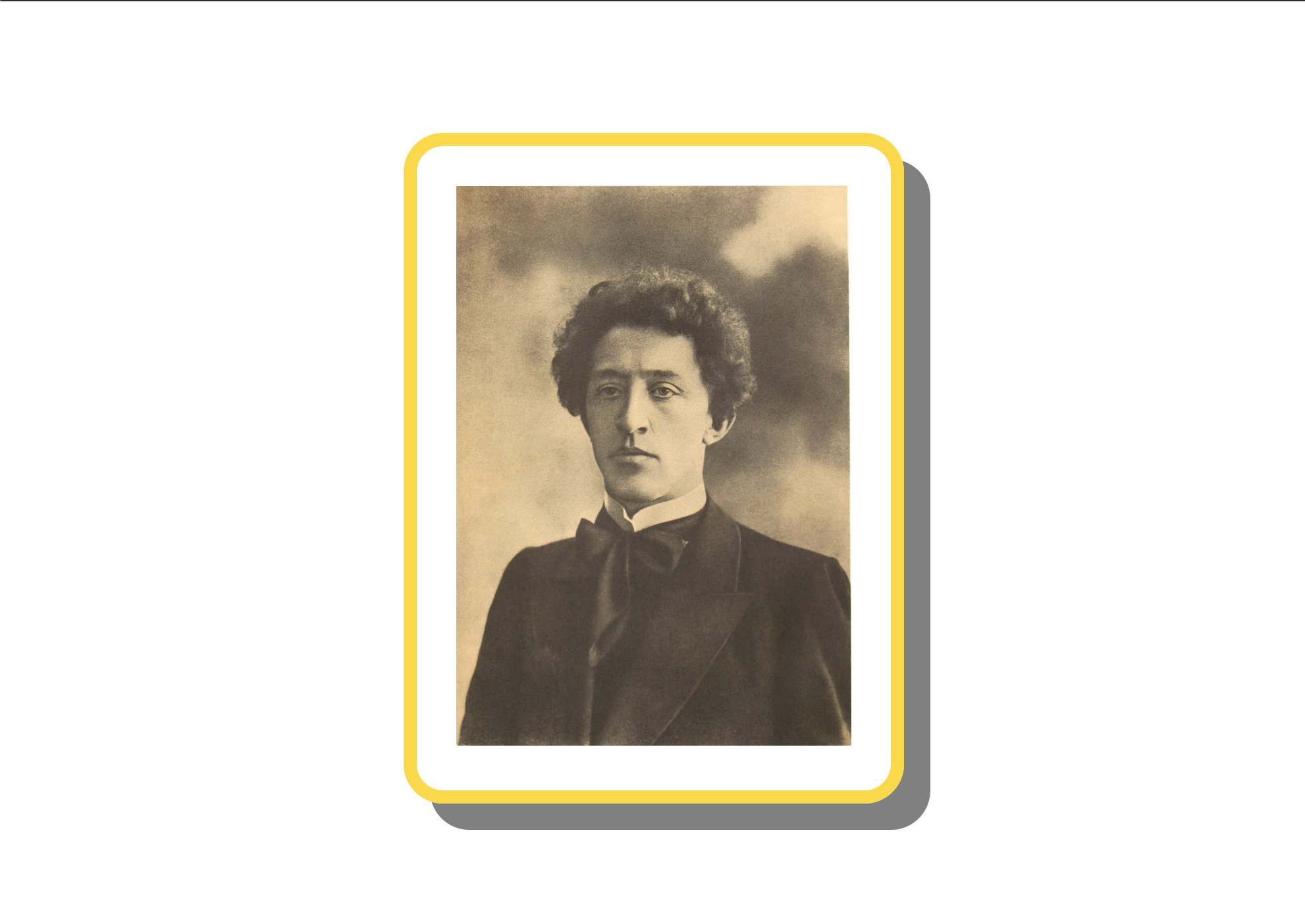

What is a block made from?

1. Content area
2. Border

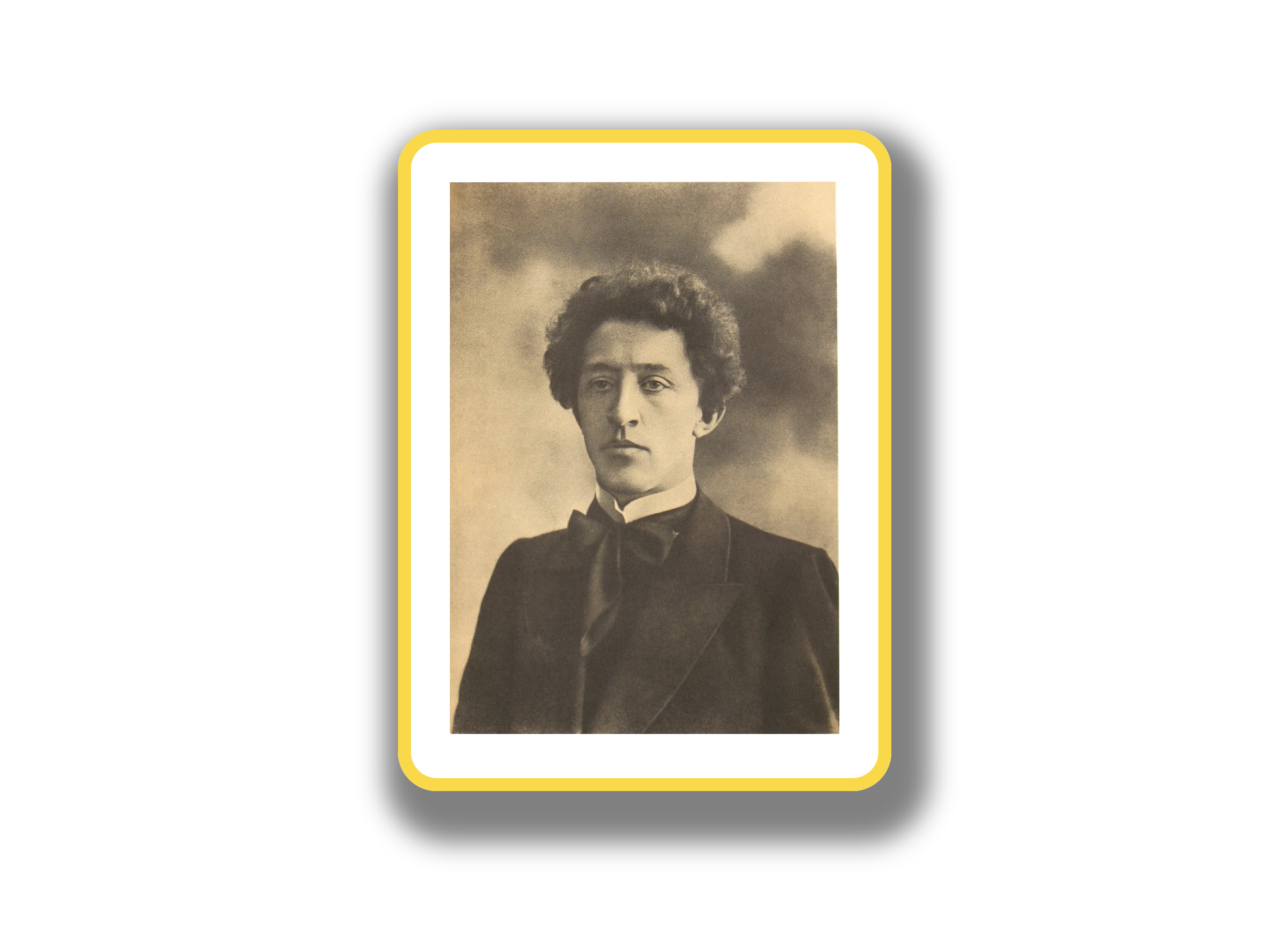

What is a block made from?

1. Content area
2. Blur
3. Border
4. Blur
5. Shadow (blurred)

How is a block drawn?

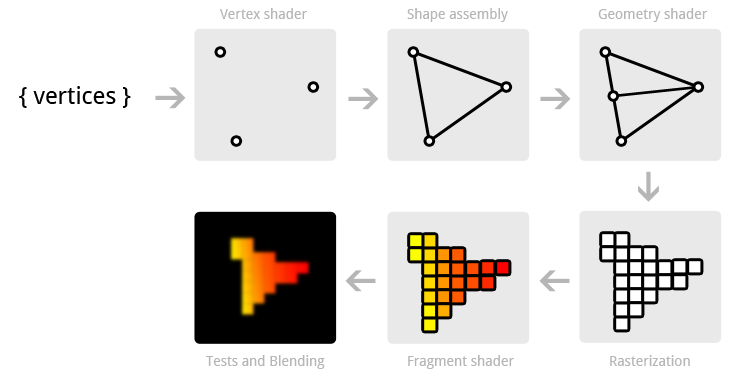

Let's look at the GPU pipeline

How is a block drawn?

Let's take a look at the Tech Assignment

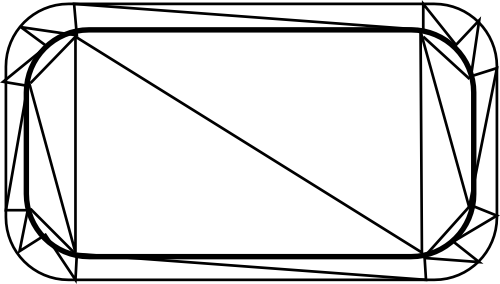

Solution 1:

Assembly from triangles

Triangle cons

1. Grid assembling
2. Grid rebuilding

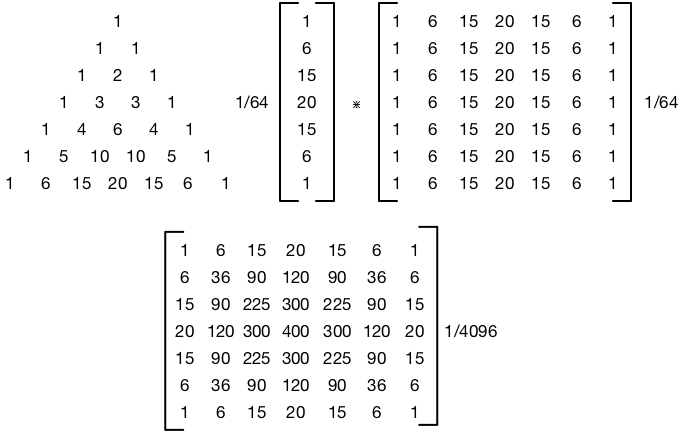

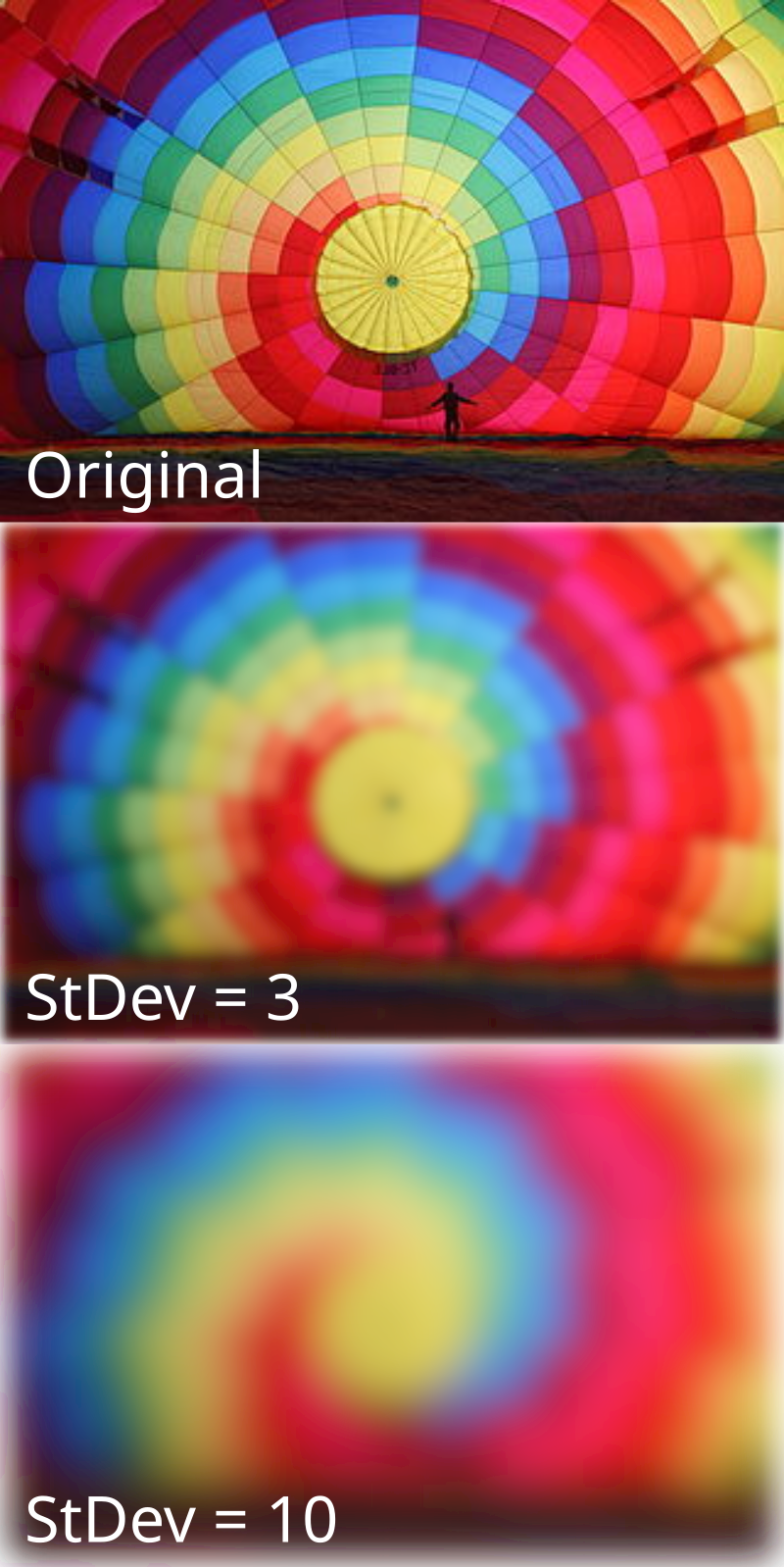

3. Blurring

Solution 2:

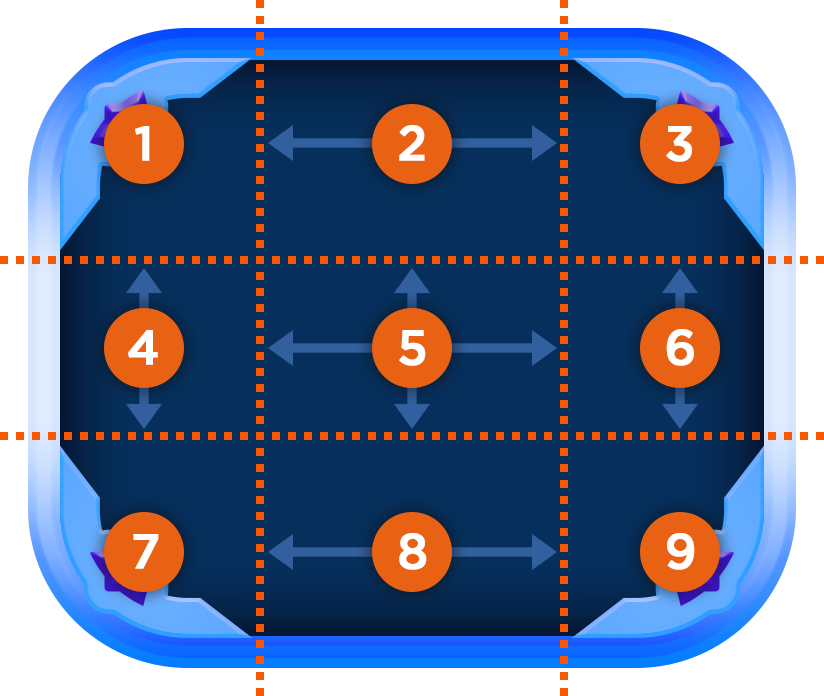

Nine slices

Who uses Nine slices?

1. Android
2. Old iOS
3. CSS border-image

Nine slices cons

1. Texture for each new shape
2. No dynamics

Solution 3:

SDF

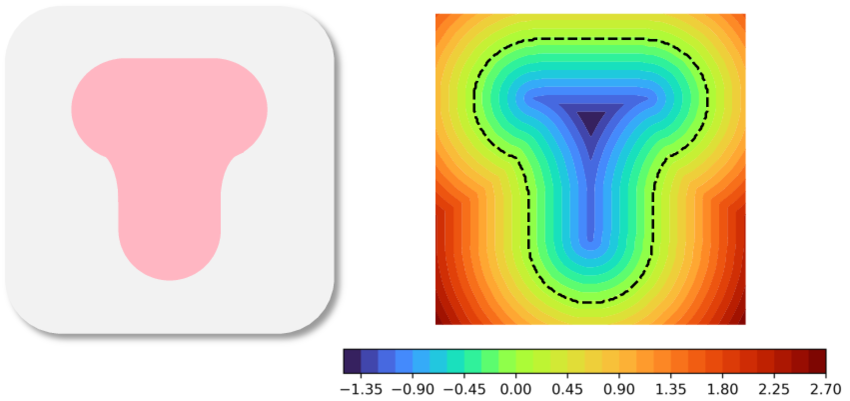

SDF — this is a function that returns the distance to the closest object edge.

-1 — inside
0 — on edge
1 — outside

Who uses SDF?

1. Browsers
2. iOS

SDF cons

1. Hard algorithms

SDF pros

1. Memory
2. Speed

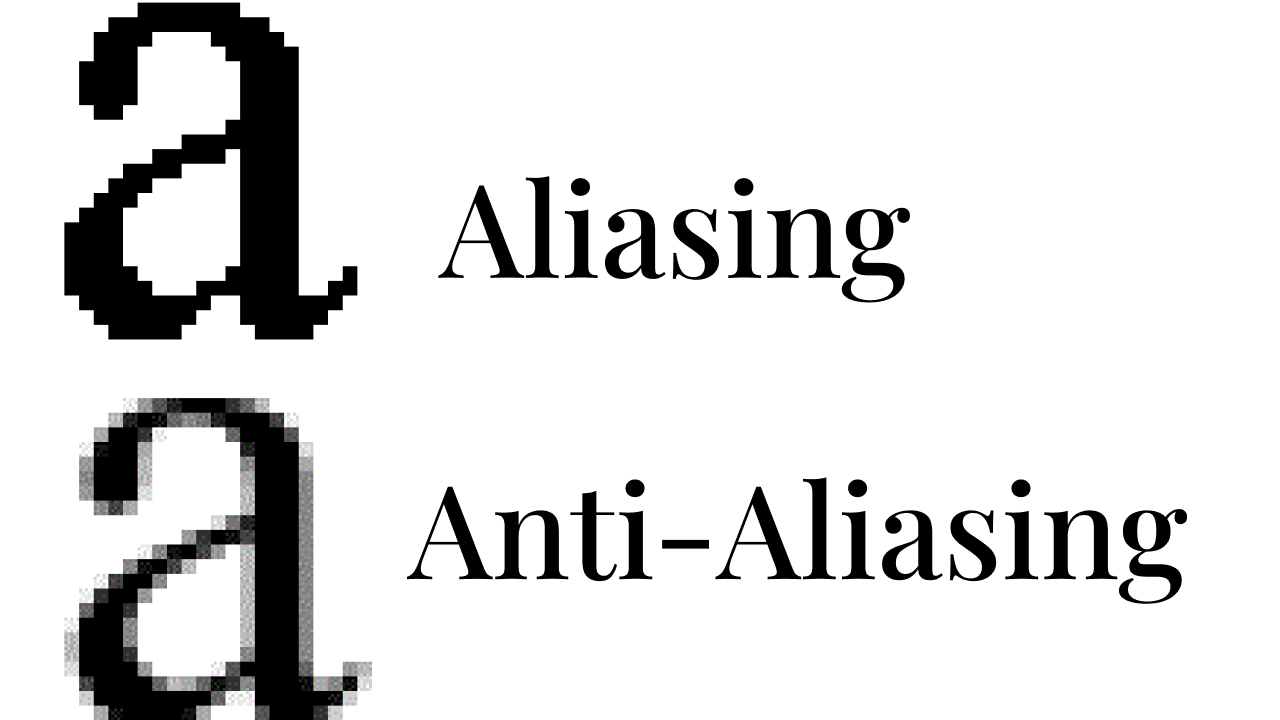

3. Sharpness

Why SDF?

1. Shaders assembled at runtime
2. Can generate custom ones

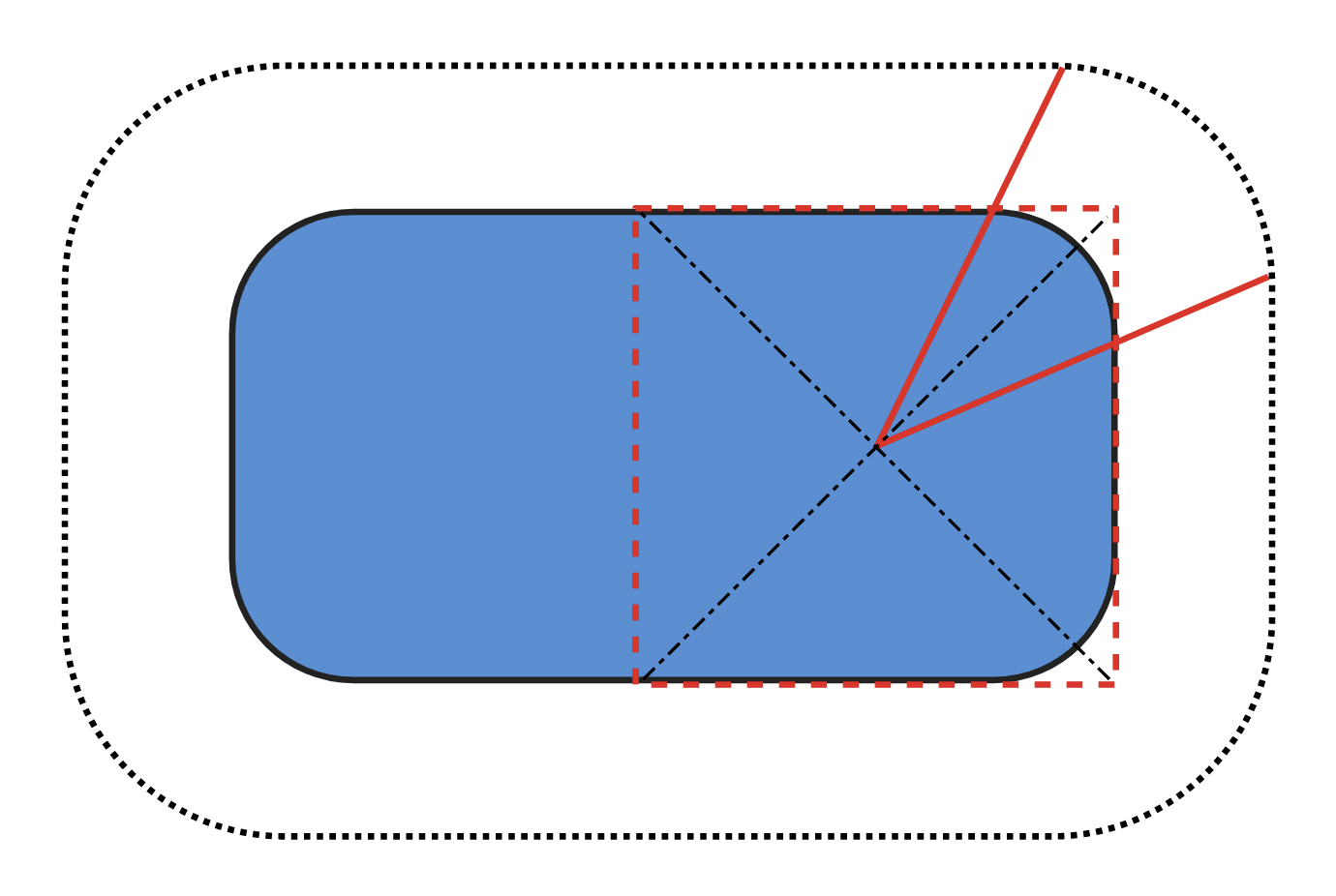

            float sdRoundedBox( in vec2 p, in vec2 b, in vec4 r )
            {
                r.xy = (p.x>0.0)?r.xy : r.zw;
                r.x  = (p.y>0.0)?r.x  : r.y;
                vec2 q = abs(p)-b+r.x;
                return min(max(q.x,q.y),0.0) + length(max(q,0.0)) - r.x;
            }


CSS Border Module 4

Solution 4:

Vector Feathering

Vector Feathering — like SDF but with vectors instead of distance.

Rive

1. Browsers
2. iOS
3. Android
